Shaqlawa and Salahaddin Cities Water Supply System – IRAQ (81 km Network)

Detailed Description:

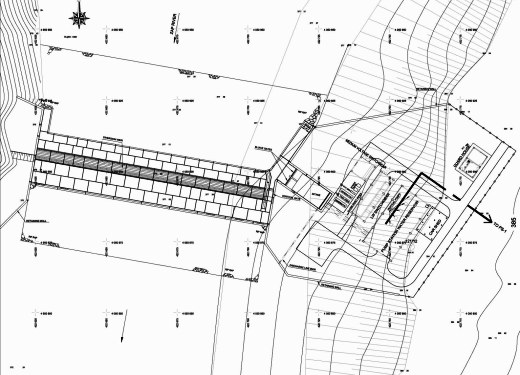

Great Zap River Raw Water Intake Structure (100,000 m3/day)
Raw Water Intake Structure (100,000 m3/day)
Raw Water Pump Station Building (5,112 m3/h)
LV Switchgear / Generators (3,200 kVA)

Water Treatment Plant and Pump Station PS-1 (100.000 m3/day)

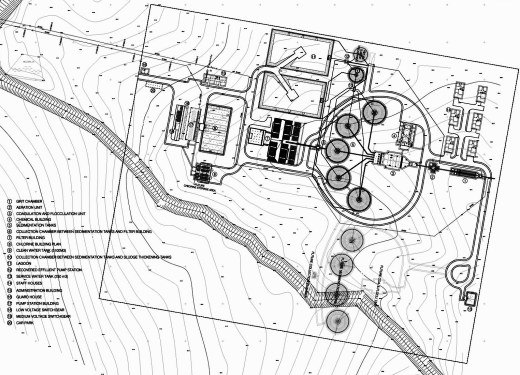

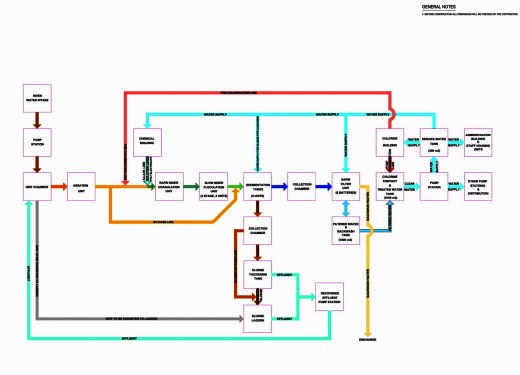

Grit Chamber, Aeration, Coagulation, Floculation Units
Recovered Effluent Pump Station
Sedimentation Tanks (5 each)
Sludge Thickening Tank
Filter Building (5 m3/m2/hr)
Treated Water Storage Tank (5,100 m3)
Pump Station Building (5,400 m3/h)
Chemical and Chlorine Buildings
Service Water Tank (250 m3)
Sludge Lagoons
LV Switchgear / Generators (8,000 kVA)
Administration Building

Pump Station PS-2
Water Storage Tank (5,100 m3)
Pump Station Building (2,700 m3/h + 2,610 m3/h)
LV Switchgear / Generators (8,000 kVA)

Pump Station PS-3
Water Storage Tank (5,100 m3)
Pump Station Building (2,700 m3/h)
LV Switchgear / Generators (4,000 kVA)

Pump Station PS-4
Water Storage Tank (3,200 m3)
Pump Station Building (2,664 m3/h)
LV Switchgear / Generators (3,200 kVA)

Pump Station PS-5
Water Storage Tank (3,200 m3)
Pump Station Building (2,376 m3/h)
LV Switchgear / Generators (3,200 kVA)

Main Water Reservoirs
Salahaddin Main Water Reservoir (25,000 m3)
Shaqlawa Main Water Reservoirs (3x10,000 m3)
Water Storage Tanks at Villages (10 each, Total 6,600 m3)

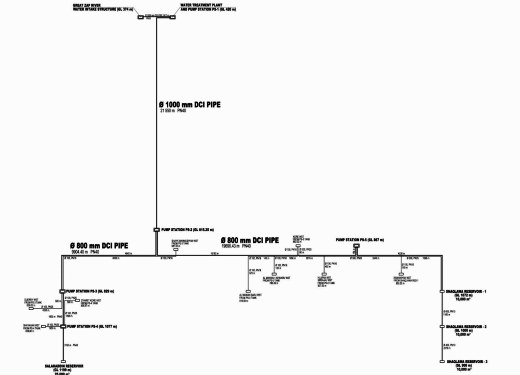

Ductile Cast Iron Pipelines
1000 mm DCI Pipelines (23 km)
800 mm DCI Pipelines (30 km)
600 mm DCI Pipelines (1 km)
400 mm DCI Pipelines (2 km)
300 mm DCI Pipelines to Village Storage Tanks (8 km)
100 mm DCI Pipelines to Village Storage Tanks (17 km)

Power Supply to Facilities
33 KV MV Overhead Transmission Lines (48 km)
33 KV MV Switchgear Buildings at Facilities
33/0.4 KV MV Switchgear Systems at Facilities (Total 30,000 kVA)

Services Provided By ESER

Cost Estimations
Basic Engineering
Topographical Surveys
