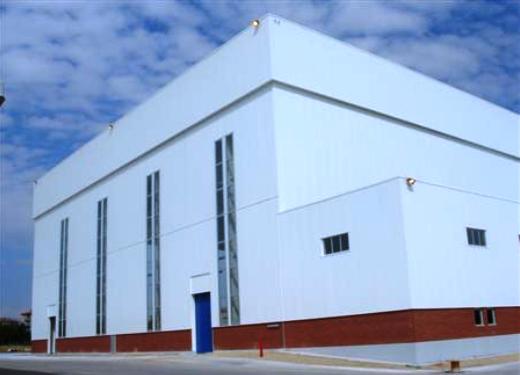

Ankara Mürted AWACS Aircraft Maintenance Hangar (8,220 sqm)

Detailed Description:

Total Construction Area 8,220 sqm

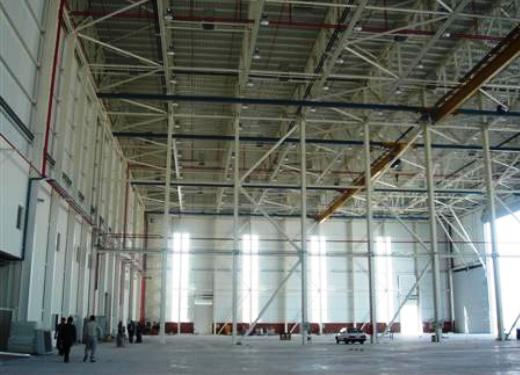

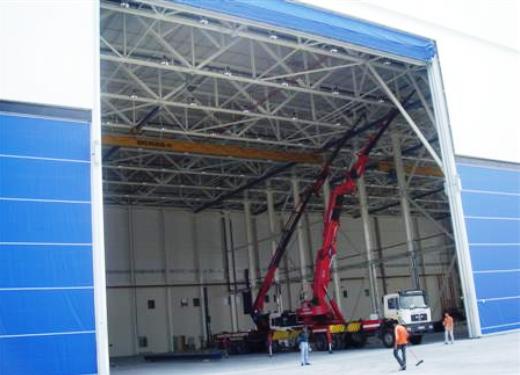

Steel Structure (Height : 25 m)
Concrete Pavement Areas : 9,000 sqm

Ground Floor (6,800 sqm) :
Acceptance Test Ground Station, Test Equipment Room, Assembly-Rework Area, Tool Room, Recreation Area, Chg. Room, WC & Shower, Warehouse, Utility Room

First Floor (1,030 sqm) :
Offices, Archives, Meeting Room

Mechanical Systems :
At Two Different Zones 167,500 kcal/h Total Cooling Capacity
At Five Different Zones 875,000 kcal/h Total Heating Capacity
34 Fan-Coil Units
Indoor Air Quality Control with Three Main Air Handling Units
52 Unit Heaters, 5 Exhaust Fans, 1 DX Type Room Precision Air Handling Unit
Operation of All HVAC System by Building Automation System
Fire Protection System Completely Based on NFPA Regulations
Wet Type Sprinklers and Smoke Ventilation System at Main Hangar

Electrical Systems :
34.5/0.4 kV, 1000 kVA Dry Type Transformer
120/208 V, 400 Hz, 160 kVA and 120/208 V, 60 Hz, 60 kVA Frequency Converters
220/380 V, 50 Hz, 60 kVA UPS System
28 VDC,5 kVA Rectifier
MV and LV Switchgear
Faraday Cage and Grounding Systems
Fire Detection and Alarm Systems
Data, Voice, Public Adress and Access Control Systems

Services Provided By ESER

Detailed Engineering
Cost Estimations
Tender Documentation
Construction Supervision
Construction Specifications
Commissioning
Start-up Inspections
Geophysical Studies
Geotechnical Studies
Basic Engineering
Topographical Surveys
